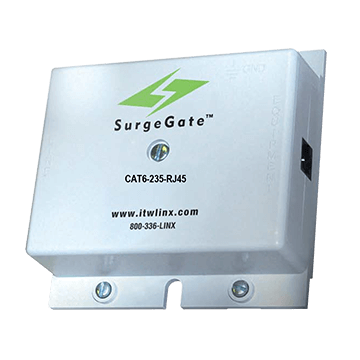

CAT6-235 RJ45

CAT6-235-RJ45

Protects high-performance 4-pair CAT6 Outside Plant Cables as well as CAT6 UTP cables for voice or applications (235V). Using RJ45 in and out.
(*Made in USA of U.S. and imported parts.* )

Downloads

Specification Sheet Product Installation Instructions

SPECIFICATIONS
FEATURES

TECHNICAL SPECIFICATIONS

PRODUCT SPECIFICATIONS

Agency Approval Primary and Isolated Loop
Grounding Requirements Uses Electrical AC Ground
for use with SurgeGate Series AC Base Units
(See installation instructions for additional grounding information)
Recommended Grounding Impedance <0.5 0hm
Width/Height/Depth/Weight 4.25” / 4.25" / 1.5" / 0.42 lbs
Product Warranty 5 years
Connected Equipment Warranty Up to $50,000

SINGLE LINE SURGE PROTECTION: (TELCO)

Signal Perfect Circuitry Yes
Fused Yes
Performance Rating Cat6
Clamping Level 235V
Response Time 1-5 Nanoseconds
Capacitance <5pF
Operating Temperature: (-40ºF to 158ºF) (-40ºC to 70ºC)
Wires Protected 4-pairs
Termination Type RJ45

FEATURES

Primary and Isolated Loop applications
Exceeds TIA/EIA Standards 568 and 758 for CAT6 performance
Solid-state protection for fastest response
Use between buildings in a campus environment as a building entrance protector or in hostile industrial applications as an isolated loop protector
Expandable System Protection Surge Gate Modules can be attached to one another to expand system protection as your system grows
5 Year Product Warranty This surge protector shall be free of any defects in design, materials, or workmanship, or ITW LINX will repair or replace the defective product
$50,000 Connected Equipment
